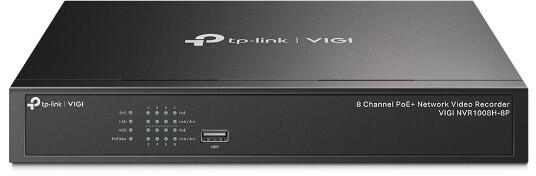

TP-link NVR rögzítő - NVR1008H-8P (8 csatorna, 8 PoE+ port; H265+, 8MP, HDMI, VGA, 2xUSB, 1x Sata(max10TB), audio)

DECODINGDecoding FormatH. 265+/H. 265/ H. 264+/H. 264Live View/Playback Resolution8MP/5MP/4MP/3MP/1080p/UXGA/720 p/VGA/4CIF/DCIF/2CIF/CIF/QCIFSynchronous Playback8 ChannelCapability2-ch @ 8MP, 4-ch @ 4MP, 8-ch @ 2MPHálózatSzabványTCP/IP, DHCP, DNS, NTP, UPnPIncoming Bandwith80 MbpsOutgoing Bandwidth60 MbpsHARD DISKSATA1 SATA InterfaceCapacityUp to 10 TBFizikai kezelőfelületHálózati csatlakozás1 RJ-45 10/100 Mbps Self-Adaptive Ethernet InterfaceUSB Interface2× USB 2.0ÁltalánosOperating Temperature-10–55 °CCsomagolás tartalmaVIGI Network Video RecorderPower AdapterHDD ScrewsMouseQuick Installation GuideMéretek (Sz x Mé x Ma)294 × 180 × 44 mmPoEStandard: 802.3af/atPoE Ports: Ports 1-8PoE Budget: 53 WKülső tápellátás53.5V DC/1.31 APower Consumption2.38 W (without disk)12.94 W (with disk)Videó/KépVideo Input8-Channel IP Video Input, up to 8 MP ResolutionRecording Resolution8MP/5MP/4MP/3MP/1080p/UXGA/720 p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIFHDMI Output Resolution1 Channel, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1024x768/60Hz, 1280x720/60HzVGA Output Resolution1 Channel, Resolution: 1920x1080/60Hz, 1680x1050/60Hz, 1440x900/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz,
